SATHEE: Simple Harmonic Motion 4 Question 14

Simple Harmonic Motion 4 Question 14

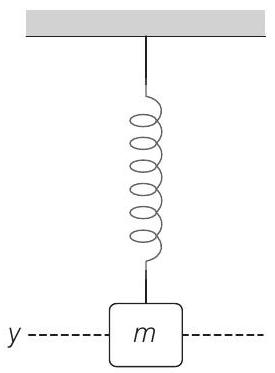

14. A mass $m$ is undergoing SHM in the vertical direction about the mean position $y_{0}$ with amplitude $A$ and angular frequency $ω$ . At a distance $y$ from the mean position, the mass detaches from the spring. Assume that the spring contracts and does not obstruct the motion of $m$ . Find the distance $y$ (measured from

the mean position) such that the height $h$ attained by the block is maximum. $(A ω^{2} > g)$ .

(2005)

Show Answer

Answer:

Correct Answer: 14. $\frac{g}{ω^{2}}$

Solution:

At distance $y$ above the mean position velocity of the block.

$v = ω \sqrt{A^{2} - y^{2}}$

After detaching from the spring net downward acceleration of the block will be $g$ .

Therefore, total height attained by the block above the mean position,

$h = y + \frac{v^{2}}{2 g} = y + \frac{ω^{2} (A^{2} - y^{2})}{2 g}$

For $h$ to be maximum $d h / d y = 0$

Putting $\frac{d h}{d y} = 0$ , we get $y = \frac{g}{ω^{2}} = y_{max}$
