Simple Harmonic Motion 4 Question 12

12. A particle of mass $m$ is attached to one end of a massless spring of force constant $k$, lying on a frictionless horizontal plane. The other end of the spring is fixed. The particle starts moving horizontally from its equilibrium position at time $t=0$ with an initial velocity $u _0$. When the speed of the particle is $0.5 u _0$, it collides elastically with a rigid wall. After this collision

(2013 Adv.)

(a) the speed of the particle when it returns to its equilibrium position is $u _0$

(b) the time at which the particle passes through the equilibrium position for the first time is $t=\pi \sqrt{\frac{m}{k}}$

(c) the time at which the maximum compression of the spring occurs is $t=\frac{4 \pi}{3} \sqrt{\frac{m}{k}}$

(d) the time at which the particle passes through the equilibrium position for the second time is $t=\frac{5 \pi}{3} \sqrt{\frac{m}{k}}$

Numerical Value

Show Answer

Answer:

Correct Answer: 12. (a, d)

Solution:

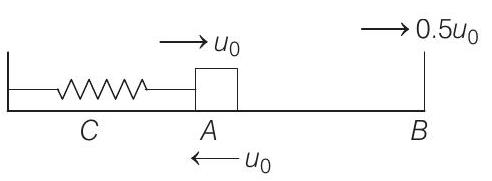

  1. At equilibrium $(t=0)$ particle has maximum velocity $u _0$. Therefore velocity at time $t$ can be written as

writing, $\quad u=u _{\max } \cos \omega t+u _0 \cos \omega$

$$ \begin{aligned} & \therefore & \omega t & =\frac{\pi}{3} \\ & \therefore & \frac{2 \pi}{T} t & =\frac{\pi}{3} \\ & \therefore & t & =\frac{T}{6} \end{aligned} $$

(b) $t=t _{A B}+t _{B A}=\frac{T}{6}+\frac{T}{6}=\frac{T}{3}=\frac{2 \pi}{3} \sqrt{\frac{m}{k}}$

(c) $t=t _{A B}+t _{B A}+t _{A C}=\frac{T}{6}+\frac{T}{6}+\frac{T}{4}=\frac{7}{12} T=\frac{7 \pi}{6} \sqrt{\frac{m}{k}}$

(d) $t=t _{A B}+t _{B A}+t _{A C}+t _{C A}=\frac{t}{6}+\frac{T}{6}+\frac{T}{4}+\frac{T}{4}=\frac{5}{6} T$

$$ =\frac{5 \pi}{3} \sqrt{\frac{m}{k}} $$
