Rotation 3 Question 8

14. The net external force acting on the disk when its centre of mass is at displacement $x$ with respect to its equilibrium position is

(a) $-k x$

(b) $-2 k x$

(c) $-\frac{2 k x}{3}$

(d) $-\frac{4 k x}{3}$

(2008, 4M)

Show Answer

Answer:

Correct Answer: 14. (d)

Solution:

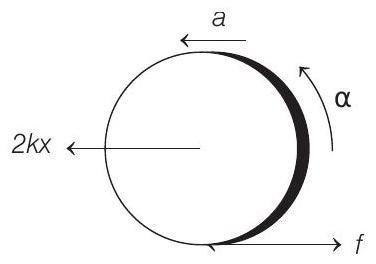

$$ \begin{aligned} a & =R \alpha \\ \therefore \quad \frac{2 k x-f}{M} & =R \frac{f R}{\frac{1}{2} M R^{2}} \end{aligned} $$

Solving this equation, we get

$$ \begin{aligned} f & =\frac{2 k x}{3} \\ \therefore \quad\left|F _{\text {net }}\right| & =2 k x-f=2 k x-\frac{2 k x}{3}=\frac{4 k x}{3} \end{aligned} $$

This is opposite to displacement.

$$ \therefore \quad F _{\text {net }}=-\frac{4 k x}{3} $$
