Optics 7 Question 5

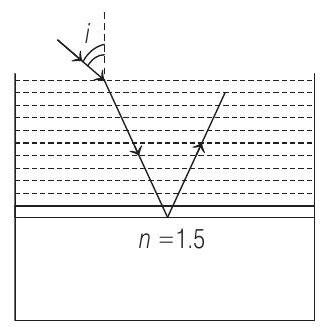

5. Consider a tank made of glass (refractive index is 1.5 ) with a thick bottom. It is filled with a liquid of refractive index $\mu$. A student finds that, irrespective of what the incident angle $i$ (see figure) is for a beam of light entering the liquid, the light reflected from the liquid glass interface is never completely polarised. For this to happen, the minimum value of $\mu$ is

(2019 Main, 9 Jan I)

(a) $\frac{3}{\sqrt{5}}$

(b) $\frac{5}{\sqrt{3}}$

(c) $\frac{4}{3}$

(d) $\sqrt{\frac{5}{3}}$

Show Answer

Answer:

Correct Answer: 5. (a)

Solution:

  1. Key Idea

When a beam of unpolarised light is reflected from a transparent medium of refractive index $\mu$, then the reflected light is completely plane polarised at a certain angle of incidence $i _B$, which is known as Brewster’s angle.

In the given condition, the light reflected irrespective of an angle of incidence is never completely polarised. So,

$$ i _C>i _B $$

where, $i _C$ is the critical angle.

$$ \Rightarrow \quad \sin i _C<\sin i _B \cdots(i) $$

From Brewster’s law, we know that

$$ \tan i _B={ }^{w} \mu _g=\frac{\mu _{\text {glass }}}{\mu _{\text {water }}}=\frac{1.5}{\mu} \cdots(ii) $$

From Eqs. (i) and (ii), we get

$$ \begin{gathered} \frac{1}{\mu}<\frac{1.5}{\sqrt{(1.5)^{2}+(\mu)^{2}}} \\ \Rightarrow \quad \sqrt{(1.5)^{2}+\mu^{2}}<1.5 \mu \\ \mu^{2}+(1.5)^{2}<(1.5 \mu)^{2} \text { or } \mu<\frac{3}{\sqrt{5}} \\ \therefore \text { The minimum value of } \mu \text { should be } \frac{3}{\sqrt{5}} . \end{gathered} $$
