Electrostatics 5 Question 4

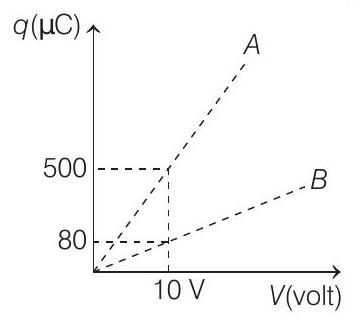

4. Figure shows charge $(q)$ versus voltage $(V)$ graph for series and parallel combination of two given capacitors. The capacitances are

(Main 2019, 10 April I)

(a) $60 μ F$ and $40 μ F$

(b) $50 μ F$ and $30 μ F$

(d) $40 μ F$ and $10 μ F$

Show Answer

Answer:

Correct Answer: 4. (d)

Solution:

In the given figure, Slope of $O A >$ Slope of $O B$

Since, we know that, net capacitance of parallel combination $>$ net capacitance of series combination

$∴$ Parallel combination’s capacitance,

$C_{P} = C_{1} + C_{2} = \frac{500 μ C}{10 V} = 50 μ F \dots (i)$

Series combination’s capacitance,

$C_{S} = \frac{C_{1} C_{2}}{C_{1} + C_{2}} = \frac{80 μ C}{10 V} = 8 μ F \dots (i i)$

$\begin{aligned} C_{1} C_{2} & = 8 \times (C_{1} + C_{2}) = 8 \times 50 μ F \dots (i i i) \\ = 400 μ F [using Eq. (i)] \end{aligned}$

From Eqs. (i) and (iii), we get

$\begin{aligned} C_{1} = 50 - C_{2} \\ and C_{1} C_{2} = 400 \\ \Rightarrow C_{2} (50 - C_{2}) = 400 \\ \Rightarrow 50 C_{2} - C_{2}^{2} = 400 \\ or C_{2}^{2} - 50 C_{2} + 400 = 0 \\ \Rightarrow C_{2} = \frac{+ 50 \pm \sqrt{2500 - 1600}}{2} = \frac{+ 50 \pm 30}{2} \end{aligned}$

$\Rightarrow C_{2} = + 40 μ F$ or $+ 10 μ F$

Also, $C_{1} = 50 - C_{2} \Rightarrow C_{1} = + 10 μ F$ or $+ 40 μ F$

Hence, capacitance of two given capacitors is $10 μ F$ and $40 μ F$ .
