Current Electricity 3 Question 14

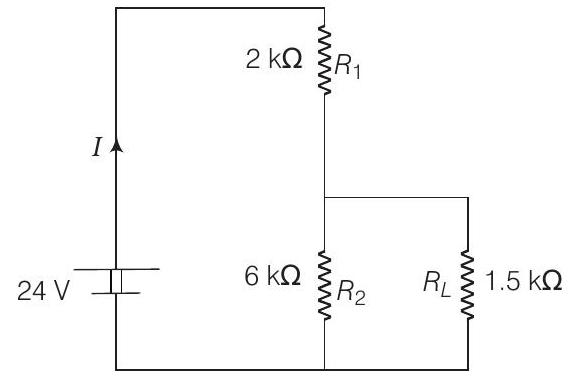

13. For the circuit shown in the figure

(2009)

Show Answer

Solution:

  1. $R _{\text {total }}=2+\frac{6 \times 1.5}{6+1.5}=3.2 k \Omega$

(a) $I=\frac{24 V}{3.2 k \Omega}=7.5 mA=I _{R _1}$

$I _{R _2}=\frac{R _L}{R _L+R _2} I$

$I=\frac{1.5}{7.5} \times 7.5=1.5 mA$

$$ I _{R _L}=6 mA $$

(b) $V _{R _L}=\left(I _{R _L}\right)\left(R _L\right)=9 V$

(c) $\frac{P _{R _1}}{P _{R _2}}=\frac{\left(I _{R _1}^{2}\right) R _1}{\left(I _{R _2}^{2}\right) R _2}=\frac{(7.5)^{2}(2)}{(1.5)^{2}(6)}=\frac{25}{3}$

(d) When $R _1$ and $R _2$ are inter changed, then

$$ \frac{R _2 R _L}{R _2+R _L}=\frac{2 \times 1.5}{3.5}=\frac{6}{7} k \Omega $$

Now potential difference across $R _L$ will be

$$ V _L=24 \frac{6 / 7}{6+6 / 7}=3 V $$

Earlier it was $9 V$

Since, $\quad P=\frac{V^{2}}{R} \quad$ or $\quad P \propto V^{2}$

In new situation potential difference has been decreased three times. Therefore, power dissipated will decrease by a factor of 9.
