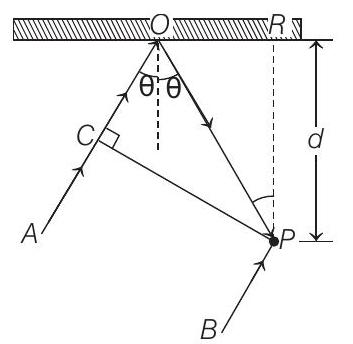

22. In the adjacent diagram, $C P$ represents a wavefront and $A O$ and $B P$, the corresponding two rays. Find the condition of $\theta$ for constructive interference at $P$ between the ray $B P$ and reflected ray $O P$

$(2003,2 M)$

(a) $\cos \theta=\frac{3 \lambda}{2 d}$

(b) $\cos \theta=\frac{\lambda}{4 d}$

(c) $\sec \theta-\cos \theta=\frac{\lambda}{d}$

(d) $\sec \theta-\cos \theta=\frac{4 \lambda}{d}$

Show Answer

Solution:

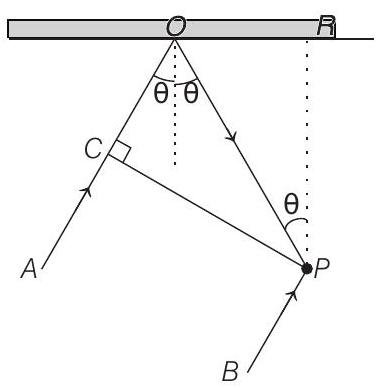

  1. $P R=d$

$$ \begin{array}{ll} \therefore & P O=d \sec \theta \\ \text { and } & C O=P O \cos 2 \theta=d \sec \theta \cos 2 \theta \end{array} $$

path difference between the two rays is,

$$ \Delta x=P O+O C=(d \sec \theta+d \sec \theta \cos 2 \theta) $$

phase difference between the two rays is $\Delta \varphi=\pi$ (one is reflected, while another is direct)

Therefore, condition for constructive interference should be

$$ \Delta x=\frac{\lambda}{2}, \frac{3 \lambda}{2} \ldots $$

or

$$ d \sec \theta(1+\cos 2 \theta)=\frac{\lambda}{2} $$

or

$$ \frac{d}{\cos \theta}\left(2 \cos ^{2} \theta\right)=\frac{\lambda}{2} \text { or } \cos \theta=\frac{\lambda}{4 d} $$
