Current Electricity 3 Question 3
3. A cell of internal resistance $r$ drives current through an external resistance $R$. The power delivered by the cell to the external resistance will be maximum when
(8 April 2019, II)
(a) $R=2 r$
(b) $R=r$
(c) $R=0.001 r$
(d) $R=1000 r$
Show Answer
Solution:

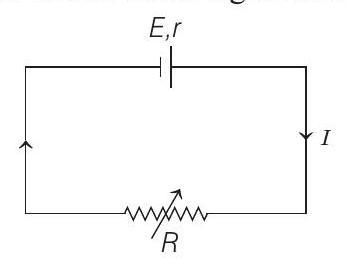

- Given circuit is shown in the figure below
Net current, $\quad I=\frac{E}{R+r}$
Power across $R$ is given as
$$ P=I^{2} R=\frac{E}{R+r}^{2} \cdot R \quad \text { [using Eq. (i } $$
For the maximum power,
$$ \begin{gathered} \frac{d P}{d R}=0 \\ \Rightarrow \quad \frac{d P}{d R}=\frac{d}{d R} \frac{E^{2}}{R+r} \cdot R \\ =E^{2} \frac{d}{d R} \frac{R}{(R+r)^{2}} \\ =E^{2} \frac{(R+r)^{2} \times 1-2 R \times(R+r)}{(R+r)^{4}}=0 \\ \Rightarrow \quad(R+r)^{2}=2 R(R+r) \text { or } R+r=2 R \Rightarrow r=R \end{gathered} $$
$\therefore$ The power delivered by the cell to the external resistance is maximum when $R=r$.
Alternate Solution
From maximum power theorem, power dissipated will be maximum when internal resistance of source will be equals to external load resistance, i.e.
$r=R$.
