3D Geometry 2 Question 2

####2. The vertices $B$ and $C$ of a $\triangle A B C$ lie on the line, $\frac{x+2}{3}=\frac{y-1}{0}=\frac{z}{4}$ such that $B C=5$ units. Then, the area (in sq units) of this triangle, given that the point $A(1,-1,2)$ is

(2019 Main, 9 April II)

(a) $\sqrt{34}$

(b) $2 \sqrt{34}$

(c) $5 \sqrt{17}$

(d) 6

Show Answer

Answer:

Correct Answer: 2. (a)

Solution:

  1. Given line is $\frac{x+2}{3}=\frac{y-1}{0}=\frac{z}{4}$

Vector along line is, $\mathbf{a}=3 \hat{\mathbf{i}}+4 \hat{\mathbf{k}}$

and vector joining the points $(1,-1,2)$ to $(-2,1,0)$ is $\mathbf{b}=(1+2) \hat{\mathbf{i}}+(-1-1) \hat{\mathbf{j}}+(2-0) \hat{\mathbf{k}}$

$ =3 \hat{\mathbf{j}}-2 \hat{\mathbf{j}}+2 \hat{\mathbf{k}} $

and $|\mathbf{B C}|=5$ units

Now, area of required $\triangle A B C$

$ =\frac{1}{2}|\mathbf{B C}||\mathbf{b}||\sin \theta| $ …… (i)

[where $\theta$ is angle between vectors $\mathbf{a}$ and $\mathbf{b}$ ]

$\because|\mathbf{b}| \sin \theta=\frac{|\mathbf{a} \times \mathbf{b}|}{|\mathbf{a}|}$,

$ \because \quad|\mathbf{a} \times \mathbf{b}|=\left|\begin{array}{ccc} \hat{\mathbf{i}} & \hat{\mathbf{j}} & \hat{\mathbf{k}} \\ 3 & 0 & 4 \\ 3 & -2 & 2 \end{array}\right|=8 \hat{\mathbf{i}}+6 \hat{\mathbf{j}}-6 \hat{\mathbf{k}} $

$\Rightarrow \quad|\mathbf{a} \times \mathbf{b}|=\sqrt{64+36+36}$

$ =\sqrt{136}=2 \sqrt{34} $

and $\quad|\mathbf{a}|=\sqrt{9+16}=5$

$\therefore \quad|\mathbf{b}| \sin \theta=\frac{2 \sqrt{34}}{5}$

On substituting these values in Eq. (i), we get

Required area $=\frac{1}{2} \times 5 \times \frac{2 \sqrt{34}}{5}=\sqrt{34}$ sq units

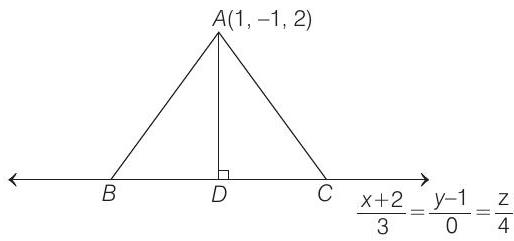

Alternate Method

Given line is $\frac{x+2}{3}=\frac{y-1}{0}=\frac{z}{4}=\lambda$ (let) …(i)

Since, point $D$ lies on the line $B C$.

$\therefore$ Coordinates of $D=(3 \lambda-2,1,4 \lambda)$

Now, $\quad D R$ of $B C \Rightarrow a_{1}=3, b_{1}=0, c_{1}=4$

and $D R$ of $A D \Rightarrow a_{2}=3 \lambda-3, b_{2}=2, c_{2}=4 \lambda-2$

Since, $\quad A D \perp B C, a_{1} a_{2}+b_{1} b_{2}+c_{1} c_{2}=0$

$ 3 \times(3 \lambda-3)+0(2)+4(4 \lambda-2)=0 $

$\Rightarrow \quad 9 \lambda-9+0+16 \lambda-8=0$

$\Rightarrow \quad 25 \lambda-17=0$

$\Rightarrow \quad \lambda=\frac{17}{25}$

$\therefore$ Coordinates of $D=\frac{1}{25}, 1, \frac{68}{25}$.

Now, $\quad A D=\sqrt{1-\frac{1}{25}^{2}+(-1-1)^{2}+2-\frac{68}{25}^{2}}$

$=\sqrt{\frac{24}{25}^{2}+(-2)^{2}+\frac{-18}{25}^{2}}$

$=\sqrt{\frac{576}{625}+4+\frac{324}{625}}=\frac{2}{5} \sqrt{34}$

$\therefore$ Area of $\triangle A B C=\frac{1}{2} B C \times A D$

$ \begin{aligned} & =\frac{1}{2} \times 5 \times \frac{2}{5} \sqrt{34} \\ & =\sqrt{34} \text { sq units } \end{aligned} $
