Optics 4 Question 20

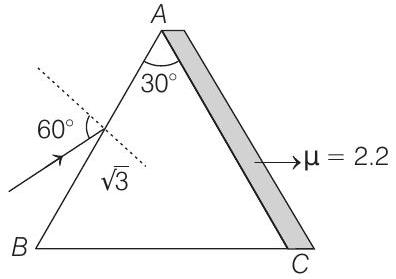

21. A prism of refracting angle $30^{\circ}$ is coated with a thin film of transparent material of refractive index 2.2 on face $A C$ of the prism. A light of wavelength $6600 \AA$ is incident on face $A B$ such that angle of incidence is $60^{\circ}$ . Find

$(2003, 4$ M)

(a) the angle of emergence and

(b) the minimum value of thickness of the coated film on the face $A C$ for which the light emerging from the face has maximum intensity. (Given refractive index of the material of the prism is $\sqrt{3}$ )

Show Answer

Answer:

Correct Answer: 21. (a) zero

(b) $1500 \AA$

Solution:

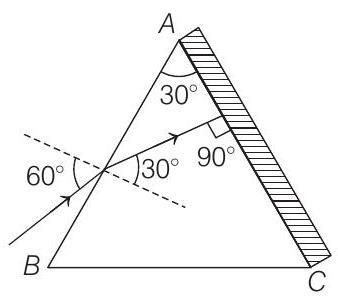

(a) $\sin i_{1} = μ \sin r_{1}$

$\begin{array}{lll} or & \sin 60^{\circ} = \sqrt{3} \sin r_{1} \\ ∴ & \sin r_{1} & = \frac{1}{2} or r_{1} = 30^{\circ} \\ Now, & r_{1} + r_{2} = A \\ ∴ & r_{2} & = A - r_{1} = 30^{\circ} - 30^{\circ} = 0^{\circ} \end{array}$

Therefore, ray of light falls normally on the face $A C$ and angle of emergence $i_{2} = 0^{\circ}$ .

(b) Multiple reflections occur between surface of film. Intensity will be maximum if constructive interference takes place in the transmitted wave.

For maximum thickness

$\begin{aligned} Δ x & = 2 μ t = λ (t = thickness) \\ ∴ t & = \frac{λ}{2 μ} = \frac{6600}{2 \times 2.2} = 1500 \AA \end{aligned}$
