Electrostatics 7 Question 23
25. Four point charges, each of $+q$, are rigidly fixed at the four corners of a square planar soap film of side $a$. The surface tension of the soap film is $\gamma$. The system of charges and planar film are in equilibrium, and $a=k{\frac{q^{2}}{Y}}^{1 / N}$, where $k$ is a constant. Then $N$ is
(2011)
True/False
Show Answer
Solution:
$F _1=$ Net electrostatic force on any one charge due to rest of three charges
$$ =\frac{1}{4 \pi \varepsilon _0} \frac{q^{2}}{a^{2}} \quad \sqrt{2}+\frac{1}{2} $$
$F _2=$ Surface tension force $=\gamma a$

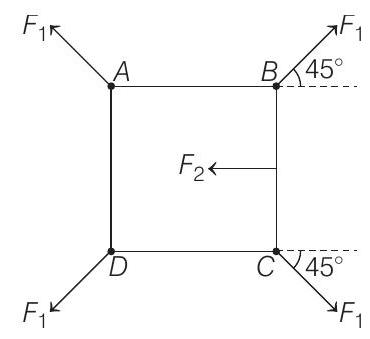

If we see the equilibrium of line $B C$, then
$$ \begin{gathered} 2 F _1 \cos 45^{\circ}=F _2 \\ \text { or } \sqrt{2} F _1=F _2 \\ \text { or } \quad \frac{1}{4 \pi \varepsilon _0} \frac{q^{2}}{a^{2}} 2+\frac{1}{\sqrt{2}}=\gamma a \\ \therefore \quad a^{3}=\frac{1}{4 \pi \varepsilon _0} 2+\frac{1}{\sqrt{2}} \frac{q^{2}}{Y} \\ \text { or } \quad a=\frac{1}{4 \pi \varepsilon _0} 2+\frac{1}{\sqrt{2}} \quad \frac{q^{2}}{Y}=k \frac{q^{2}}{Y} \end{gathered} $$
where, $k=\frac{1}{4 \pi \varepsilon _0} \quad 2+\frac{1}{\sqrt{2}}$
Therefore, $N=3$
Answer is 3 .
