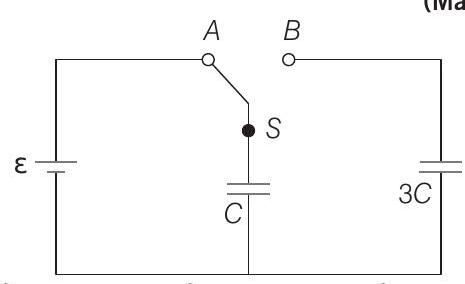

12. In the figure shown, after the switch ’ $S$ ’ is turned from position ’ $A$ ’ to position ’ $B$ ‘, the energy dissipated in the circuit in terms of capacitance ’ $C$ ’ and total charge ’ $Q$ ’ is

(a) $\frac{3}{4} \cdot \frac{Q^{2}}{C}$

(b) $\frac{5}{8} \cdot \frac{Q^{2}}{C}$

(d) $\frac{3}{8} \cdot \frac{Q^{2}}{C}$

Show Answer

Answer:

Correct Answer: 12. $0.288 m J$ 13. $0.9 A$ 14. $V_{A B} = 25 V, V_{B C} = 75 V$

Solution:

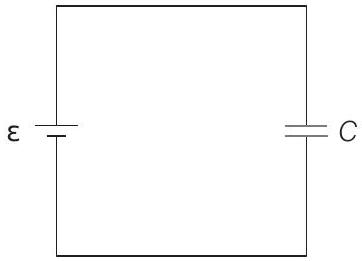

In position ’ $A$ ’ of switch, we have a capacitor joined with battery.

So, energy stored in position

$U_{1} = \frac{1}{2} C ε^{2}$

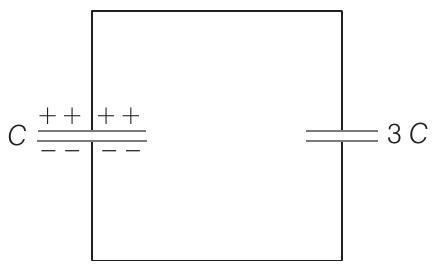

When switch is turned to position $B$ , we have a charged capacitor joined to an uncharged capacitor.

Common potential in steady state will be

$V = \frac{total charge}{total capacity} = \frac{C ε}{4 C} = \frac{ε}{4}$

Now, energy stored will be

$\begin{aligned} U_{2} & = \frac{1}{2} (C_{e q}) {(V_{common})}^{2} \\ = \frac{1}{2} 4 C \times \frac{ε^{2}}{4} = \frac{1}{8} C ε^{2} \end{aligned}$

So, energy dissipated is

$\begin{aligned} Δ U & = U_{1} - U_{2} = \frac{1}{2} C ε^{2} - \frac{1}{8} C ε^{2} \\ = \frac{3}{8} C ε^{2} = \frac{3}{8} C {\frac{Q}{C}}^{2} = \frac{3}{8} \cdot \frac{Q^{2}}{C} \end{aligned}$
