Electromagnetic Induction and Alternating Current 6 Question 1

1. A circuit connected to an $A C$ source of emf $e = e_{0} \sin (100 t)$ with $t$ in seconds, gives a phase difference of $\frac{π}{4}$ between the emf $e$ and current $i$ . Which of the following circuits will exhibit this?

(Main 2019, 8 Apr II)

(a) $R C$ circuit with $R = 1 k Ω$ and $C = 1 μ F$

(b) $R L$ circuit with $R = 1 k Ω$ and $L = 1 m H$

(d) $R L$ circuit with $R = 1 k Ω$ and $L = 10 m H$

Show Answer

Answer:

Correct Answer: 1. (c)

Solution:

Given, phase difference, $φ = \frac{π}{4}$

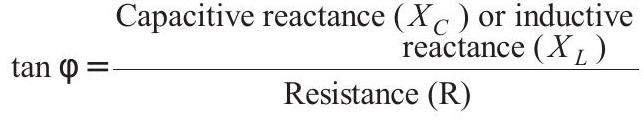

As we know, for $R - L$ or $R - C$ circuit,

$\begin{aligned} \Rightarrow \tan \frac{π}{4} & = \frac{X_{C} or X_{L}}{R} \\ 1 & = \frac{X_{C} or X_{L}}{R} \Rightarrow R = X_{C} or X_{L} \end{aligned}$

Also, given $e = e_{0} \sin (100 t)$

Comparing the above equation with general equation of emf, i.e. $e = e_{0} \sin ω t$ , we get

$ω = 100 r a d / s = 10^{2} r a d / s$

Now, checking option wise,

For $R - C$ circuit, with

$\begin{aligned} R & = 1 k Ω = 10^{3} Ω and C = 1 μ F = 10^{- 6} F \\ So, X_{C} & = \frac{1}{ω C} = \frac{1}{10^{2} \times 10^{- 6}} = 10^{4} Ω \Rightarrow R \neq X_{C} \end{aligned}$

For $R$ - $L$ circuit, with

$\begin{matrix} R = 1 k Ω = 10^{3} Ω \\ and L = 1 m H = 10^{- 3} H \\ So, X_{L} = ω L = 10^{2} \times 10^{- 3} = 10^{- 1} Ω \Rightarrow R \neq X_{L} \end{matrix}$

For $R$ - $C$ circuit, with

$\begin{array}{ll} R = 1 k Ω = 10^{3} Ω \\ and & C = 10 μ F = 10 \times 10^{- 6} F = 10^{- 5} F \\ So, & X_{C} = \frac{1}{10^{2} \times 10^{- 5}} = 10^{3} Ω \Rightarrow R = C \end{array}$

For $R$ - $L$ circuit, with

$\begin{aligned} R & = 1 k Ω = 10^{3} Ω \\ L & = 10 m H = 10 \times 10^{- 3} H = 10^{- 2} H \\ X_{L} & = 10^{2} \times 10^{- 2} = 1 Ω \Rightarrow R \neq X_{L} \end{aligned}$

and

Alternate Solution

Since, $\tan \frac{π}{4} = 1 = \frac{X_{C} or X_{L}}{R}$

$∴$ For $R - C$ circuit, we have

$1 = \frac{1}{C ω R} or ω = \frac{1}{C R}$

Similarly, for $R - L$ circuit, we have

$1 = \frac{ω L}{R} \Rightarrow ω = \frac{R}{L}$

It is given in the question that, $ω = 100 r a d / s$

Thus, again by substituting the given values of $R, C$ or $L$ option wise in the respective Eqs. (i) and (ii), we get that only for option (c),

$ω = \frac{1}{C R} = \frac{1}{10 \times 10^{- 6} \times 10^{3}} or ω = 100 r a d / s$
