Question: Q. 6. Find the expression for electric field intensity in an axial position due to electric dipole.

R [O.D. Comptt. I, II, III, 2013]

Show Answer

Solution:

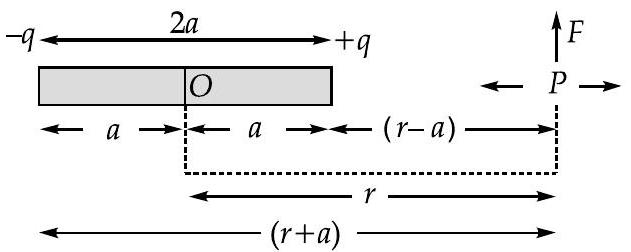

Ans. Consider an electric dipole whose length is $2 a$ and centre at $O$ . From the mid-point $O$ , consider a point $P$ at a distance $r$ , where the electric field intensity is to be determined.

$\begin{aligned} We have & E = \frac{1}{4 π ε_{0}} \cdot \frac{q}{r^{2}} & E_{1} = \frac{1}{4 π ε_{0}} \cdot \frac{q}{(r - a)^{2}} & E_{2} = \frac{1}{4 π ε_{0}} \cdot \frac{q}{(r + a)^{2}} & E = E_{1} - E_{2} & E = \frac{q}{4 π ε_{0}} [\frac{1}{(r - a)^{2}} - \frac{1}{(r + a)^{2}}] \end{aligned}$

$\begin{aligned} E = \frac{q}{4 π ε_{0}} [\frac{(r + a)^{2} - (r - a)^{2}}{(r - a)^{2} \cdot (r + a)^{2}}] & E = \frac{q}{4 π ε_{0}} \cdot \frac{4 a r}{{(r^{2} - a^{2})}^{2}} \end{aligned}$

for, $r^{2} » > a^{2}$

$∴ \begin{aligned} E & = \frac{q}{4 π ε_{0}} | \frac{4 a r}{r^{4}} | E & = \frac{1}{4 π ε_{0}} \cdot \frac{2 \times q \times 2 a \times r}{r^{4}} E & = \frac{1}{4 π ε_{0}} \cdot \frac{2 \vec{p}}{r^{3}} N / C [∵ p = 2 q a] 2 \end{aligned}$

Commonly Made Error

Several candidates derivelan expression for intensity of electric field $E$ at a point in the broadside position i.e., coaxial position, instead of that in the endon position as required. Some candidates do not understand which derivation to be given. Hence they write both the derivations. Many candidates are notable to draw the correctly labelled diagram.
